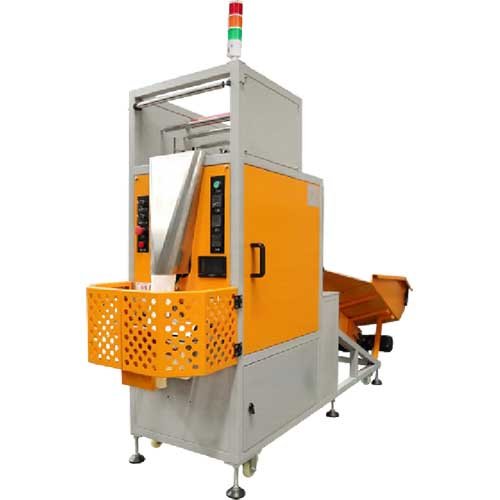

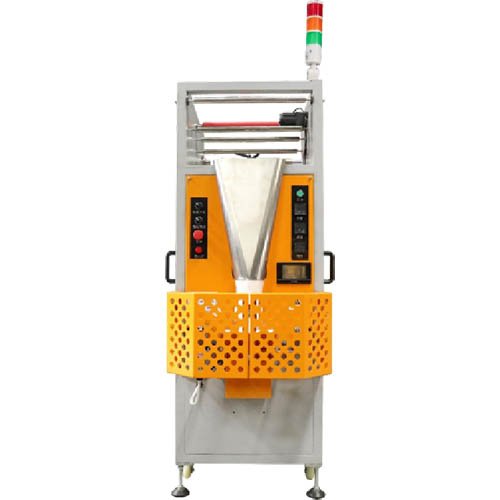

SembsunPack Fruit Vertical Packing Machine
This vertical fruit packaging machine automatically forms bags, loads materials, and seals them. It’s suitable for packaging various spherical solids, especially shatter-resistant fruits and dried goods, such as oranges, lemons, grapefruit, passion fruit, monk fruit, and avocados.
Based on the principles of a standard vertical packaging machine, it incorporates an inclined conveyor belt to minimize impact and damage to the fruit.
Fruit packaging machine performance and structural features
(1) Servo control, bag length is set and cut immediately, no need to adjust the empty run, one-step to complete, saving time and film.
(2) Electric eye automatically tracks and identifies the material to make bags. Automatically adjust the knife speed.
(3) Human-machine interface, convenient and fast parameter setting.
(4) Fault self-diagnosis function, fault display is clear at a glance.
(5) High-sensitivity photoelectric eye color mark tracking, digital input of sealing and cutting position, making the sealing and cutting position more accurate.
(6) Independent temperature PID control, better suited to various packaging materials.
(7) Simple transmission system, more reliable operation, more convenient maintenance.
(8) All controls are implemented by software, convenient function adjustment and technology upgrade, never outdated.
Optional devices
(1) Coding machine, labeling machine
(2) Punching mechanism
(3) Weight sorting scale
Technical Data
- Parameter of D-H320
| Parameter | Value |
|---|---|
| Type | D-H320 |
| Film width | Max.320mm |
| Bag length | 65-190/120-280mm |
| Product height | Max.40-85 |
| Film roll diameter | Max.320mm |
| Bagging speed (Bag/min) | 50-60 |
| Power (220V 50/60HZ) | 1.8KW, 220V, 50Hz |
| Machine size | 2310*810*1700mm |
| Machine quality | 260Kg |
